F12
Leisguar
1、Product model： | |||||
F12- background music and Tuya IOT | |||||
2、Size and colour | |||||
Product name： | Smart central control | ||||
Length | 357MM | Wide | 143.5MM | Hight | 13.5MM |
Weight | 1.4KG | Wire box | 172*75*60MM | Colour | Grey |

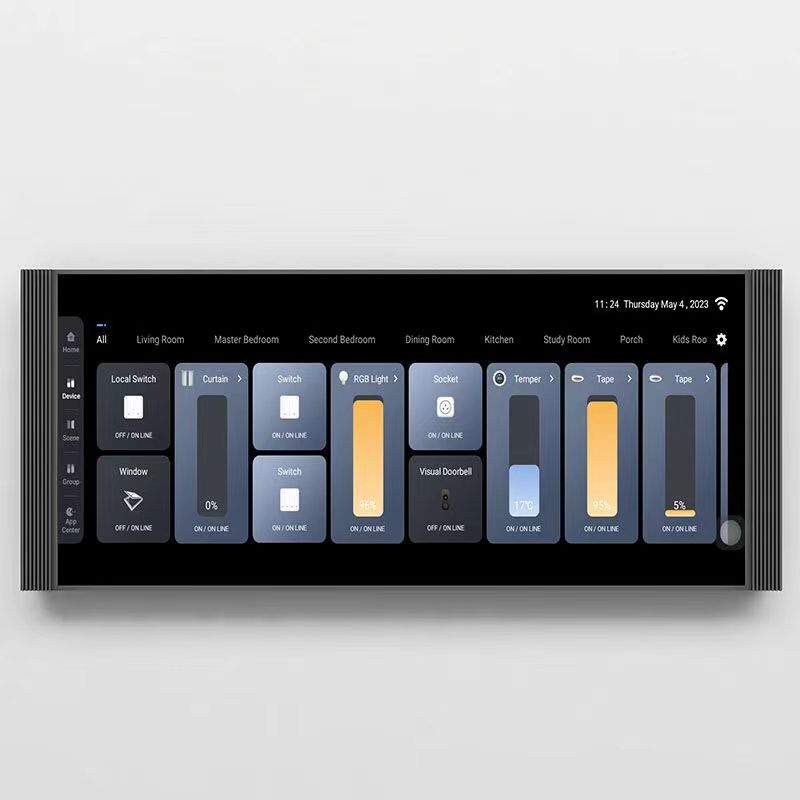

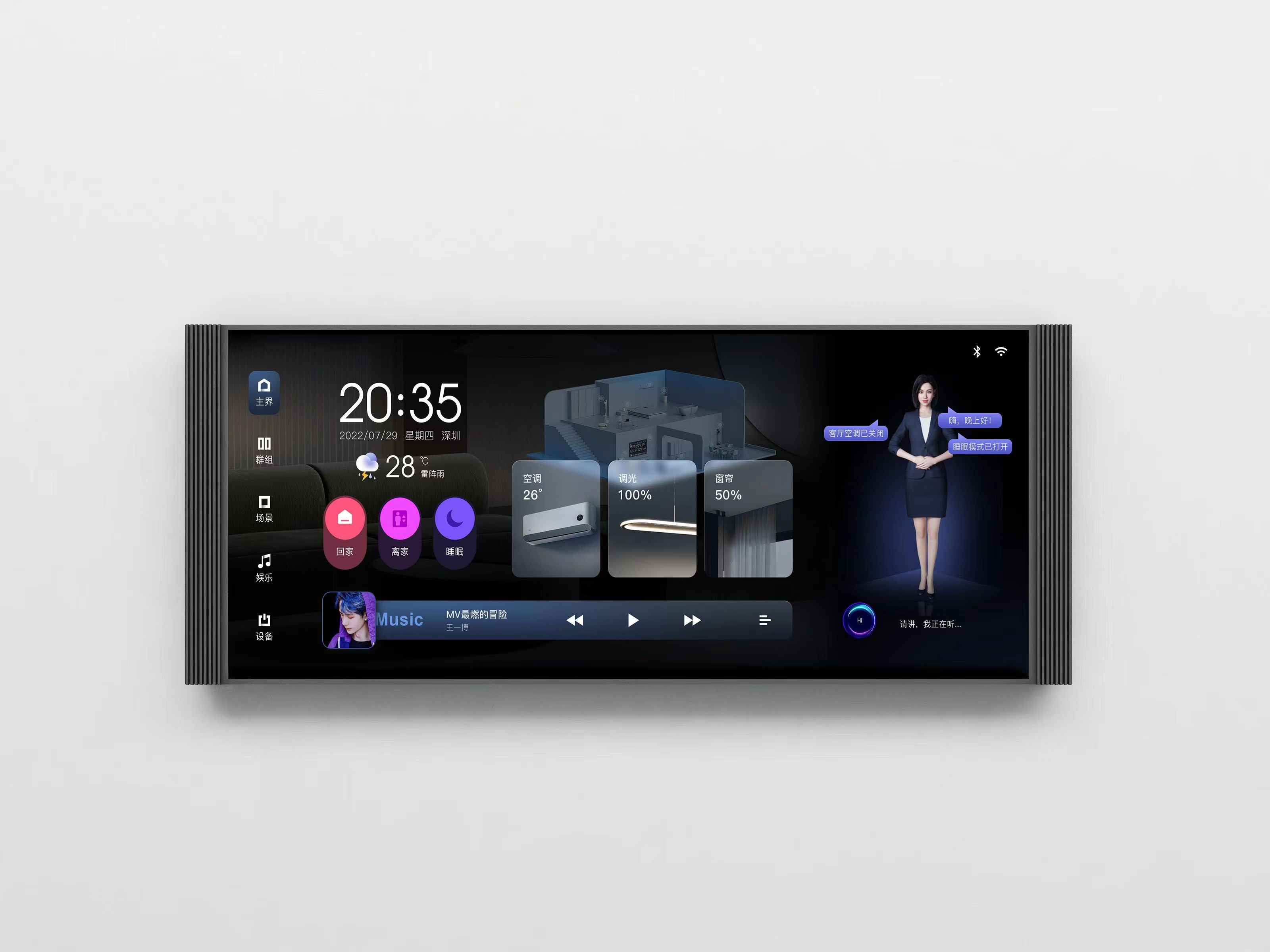

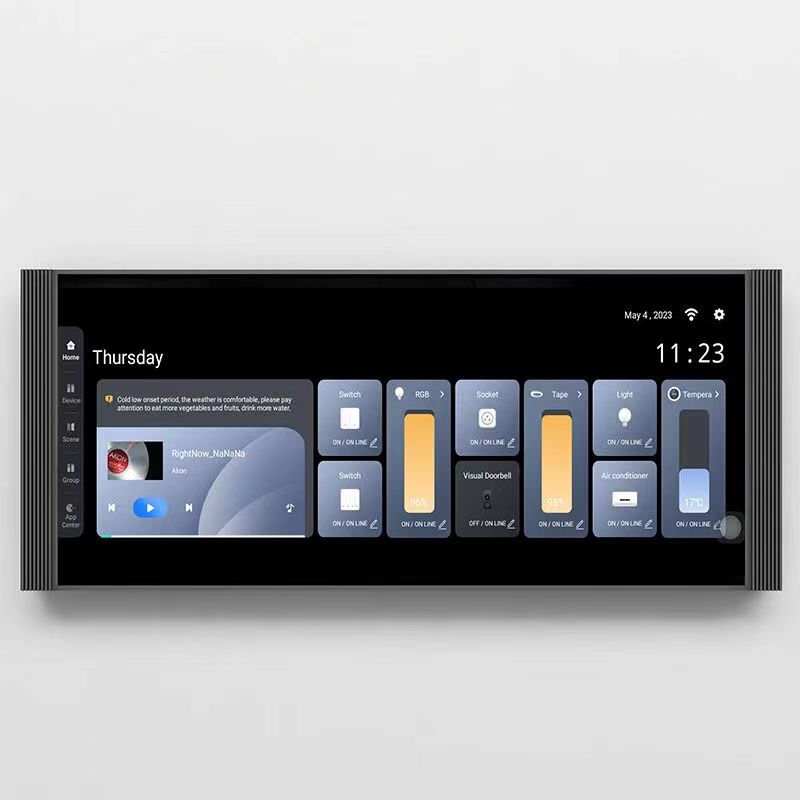

Appearance and color |  | ||||
3.Specification parameters | |||||
IOT | TUYA Docking. Support TUYA application addition | ||||
Support the contro;l of TUYA all devices. as well as the scene | |||||
voice | With recording function，Does not support voice control smart home | ||||
Wallpaper | Custom replacement | ||||

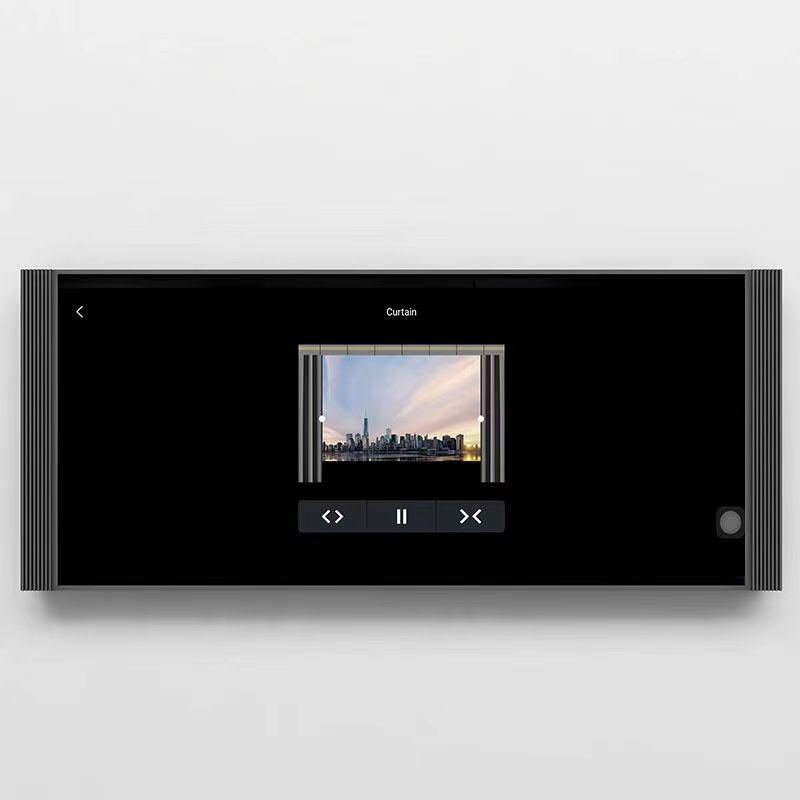

knob | Support adjustment: air conditioning temperature, curtain opening and closing, light color, light brightness and volume | ||||
Scheduled restart | Support | Set the device to automatically turn off and on | |||
Syestem | IC | RK 3566 | |||
operating system | Android11 | ||||
CPU | Quad core Cortex -A53 architecture.1.8GHZ | ||||
RAM | 2GB | ||||
ROM | 8G | ||||
Screen | size | 12.3 inches | |||
resolving power | 1920*720, IPS | ||||
Touch sereen | Multi point capacitive touch | ||||
Interface | TF | Support,MAX 32G | |||
USB | Support,MAX32G | ||||
network | WIFI | 2.4GWIFI | |||
Ethernet | support | ||||
BT | 4.2 | Connect your phone | |||
ZIGBEE | support tuya 3.0 | ||||
Attack and release | output power | 2*（10-25W）/4*（10-25W) | |||
Output impedance | 4-8 O | ||||
Total harmonic distortion | 0.03%（1W.1KHZ） | ||||
Frequent response | 20Hz-20KHz | ||||
Audio signal to noise ratio 98Ddb | |||||

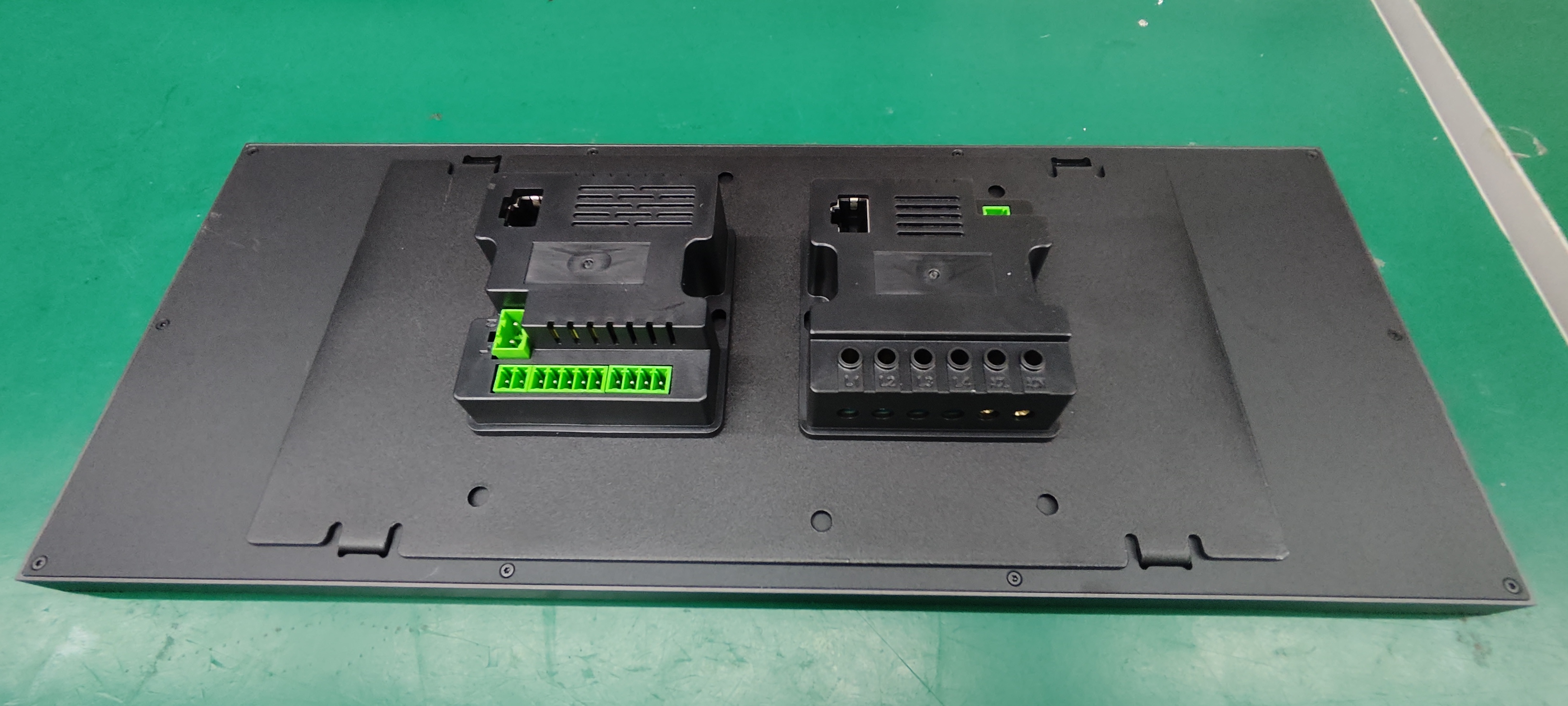

Special functions | The bottom shell can be freely combined into double 86 or single 86, which supports playing music and intelligent switch control | ||||
Audio format | MP3，WAV,WMA,FLAC,APE,,ACC,AC3，OGG | ||||
Video format | MPEG-1/2/3/4，RM/RMVB,WMV,MOV,MK,VOB,AVI,3GP,H,264 | ||||
Poewer input | AC110-250V | ||||
Audio input | AUX | ||||
Audio out | Output analog signal | ||||
Subwoofer | Analog subwoofer output | ||||
485 | Support | ||||
4.Description of other functions | |||||
1.Support and control TUYA intelligent ecological chain equipment | |||||
2.Support TUYA application addition | |||||
3.Personalized screen saver settings | |||||
4.Timing switch | |||||
5.Support customization | |||||

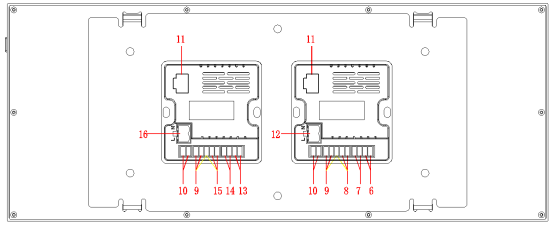

5、Installation wiring diagram | |||||
Main engine wiring diagram （Please refer to the instruction manual for details） | |||||
 | |||||
6、Packing | |||||
Manual +color box | holder+Screw | ||||
 |  | ||||
包装 | |||||
Single package： | color box | Sie： | 400*190*60MM | Weight： | 3.4KG |
